Refurbished Gemini Full Belt Press

OR-TEC Refurbished Gemini Belt Press:
A full sized double belt system ideal for the medium to large size WWTP

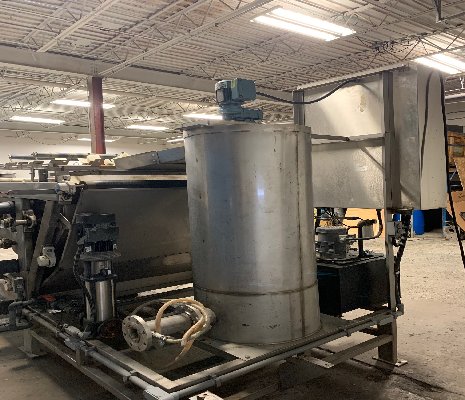

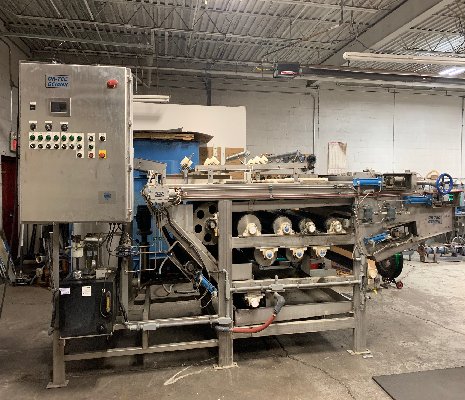

Refurbished OR-TEC Gemini Belt 1.2 meter belt press system. This all stainless steel skid mounted belt press comes with a progressive cavity sludge pump, washwater pump, control panel and hydraulic tracking and tensioning system. The belt press is factory refurbished with new dewatering belts, bearings, gravity skirting and a completely rebuilt OR-TEC Blend polymer dosing system. All OR-TEC manufactured equipment comes with an as new one year warranty.

Call 216-475-5225 for more details

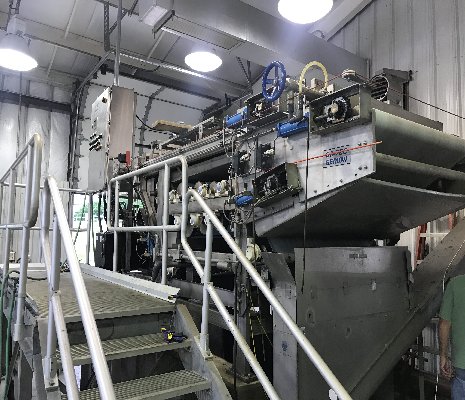

The OR-TEC Gemini Belt Press is a double belt system ideal for the medium to large size WWTP. The unit has a large flocculation tank with a variable speed mixer which allows the sludge and polymer solution to be thoroughly mixed. The variable speed mixer allows operators to easily change the mixing energy which helps ensure the best possible flocculation.

Following the flocculation tank the sludge enters a large gravity zone where plows and dewatering rollers begin the process of thickening the sludge. From here the thickened sludge enters a low pressure zone which features a large perforated stainless steel roller followed by an increasing pressure wedge zone. The final dewatering zone is a high pressure area where multiple rollers of decreasing diameter continue to squeeze and dewater the sludge.

The OR-TEC Gemini Belt Press provides a large dry solids throughput combined with an excellent final cake, low polymer usage and a high solids capture rate.

The OR-TEC Gemini features include:

  • Large gravity zone with plows and dewatering rollers
  • Perforated roller and wedge low pressure zone
  • High Pressure 8 or more roller squeezing zone
  • Auto start-up, run and shutdown
  • Automatic Belt Tracking
  • Sludge Cake Monitoring System
  • Hydraulic actuation

Additional Features:

  • Skid mounted, turnkey, factory tested complete system
  • Stainless steel frame, flocculation tank, mixers, rollers, pans, trays and fasteners
  • Highest quality pumps, motors and geardrives
  • OR-TEC designed and manufactured Polymer Dosing System and Screw Auger ensures 100% equipment compatibility

All OR-TEC Belt Press Systems are designed, engineered, manufactured and assembled in the USA
